Hangzhou Qiwei Instrument Co., Ltd. is one of the leading manufacturers and suppliers of digital heating magnetic stirrer in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk digital heating magnetic stirrer in stock here from our factory. We also accept customized orders.

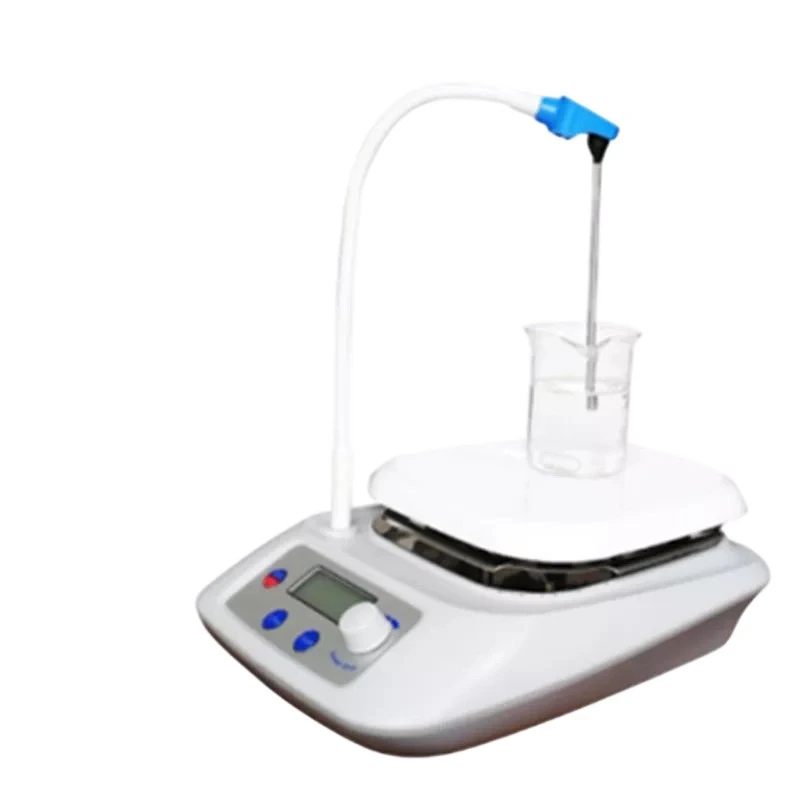

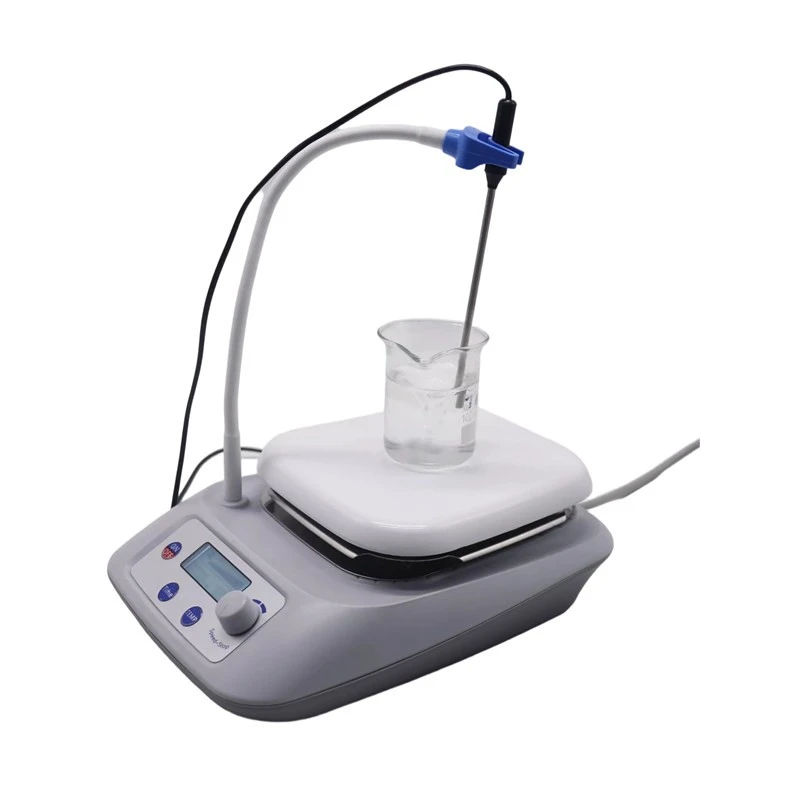

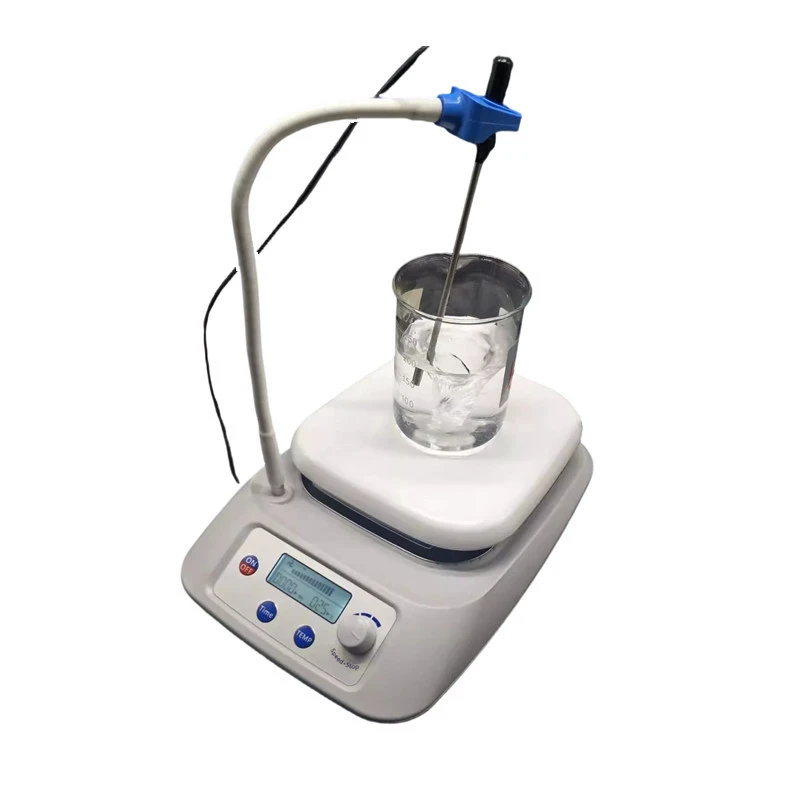

The QiweiLab digital heating magnetic stirrer is a small lab device that combines heating and magnetic stirring. The SCL-RC+ and SCL-RTC+ models have 300 W of heating power, a stated speed range of 0–1600 rpm, and a stirring capacity of 10–1000 mL.
Verify whether the chosen model supports an external PT100 temperature probe and whether the probe measures the sample liquid directly for applications that call for more precise control over sample temperature. Before making a purchase, make sure the temperature range, control performance, and probe compatibility match the model-specific parameters.
product key technologies
The magnetic stirrer is mainly used to stir or simultaneously heat and stir low-viscosity liquid or solid-liquid mixtures.
By using the principle of magnetic field and vortex, the liquid is put into the container, and the stirrer is put into the liquid at the same time. When the magnetic field is generated on the base, the stirrer is driven to move in a circular cycle to achieve the purpose of stirring the liquid. With the heating temperature control system, the sample temperature can be heated and controlled according to the specific experimental requirements, and the temperature conditions required for the experimental conditions can be maintained to ensure that the liquid mixing meets the experimental requirements. The temperature sensor will detect the temperature of the sample in real time and send it back to the control panel for monitoring and adjustment.
Heating Performance and Temperature Control
The target sample temperature, sample volume, vessel material, ambient conditions, and necessary heating time should all be taken into consideration when assessing a digital heating magnetic stirrer's heating performance.
The SCL-RC+ and SCL-RTC+ variants have a 150 by 150 mm working plate and 300 W of heating power. Verify the manufacturer's technical parameters for the maximum heating temperature, possible temperature setting range, temperature measurement technique, and control accuracy before choosing a model.
Buyers should differentiate between the maximum working plate temperature and the actual temperature of the liquid being churned for applications that need for consistent sample heating. The vessel, sample volume, heat transport, and sensor location can all affect these results.
For the verified temperature range, temperature control requirements, and model-specific performance information, please get in touch with our staff.
Advantage
1. Easy operation: Just select the required temperature and stirring speed to start the work.
2. Temperature stability: The equipment is equipped with high precision temperature sensor and intelligent control system, which can realize constant temperature heating and ensure the stability of sample temperature.
3. The stirring effect is good: the solute in the sample can be quickly mixed to make the reaction uniform and improve the reaction efficiency.
Nano-Ceramic Heating Plate for Laboratory Applications
The nano-ceramic heating plate of the QiweiLab digital heating magnetic stirrer is intended for use in magnetic stirring and laboratory heating. For standard sample preparation and temperature-controlled tests, the smooth ceramic surface offers a useful working platform.
Customers should take into account the heating plate material, maximum working temperature, chemical exposure, cleaning needs, and vessel compatibility when choosing a heating magnetic stirrer. The composition of the ceramic material and the manufacturer's confirmed standards determine the actual chemical resistance and thermal performance.
Application
The digital display heating magnetic stirrer is widely used in laboratories in the fields of chemistry, biology, medicine and so on. As follow:
1. In chemical analysis, the equipment can be used for pyrolysis, hydrolysis, acidolysis and other reaction processes of samples.
2. In biological experiments, the device can be used for cell culture, DNA/RNA extractionand other experimental operations.
3. It can also be used in teaching experiments, scientific research laboratories, industrial production and other fields.
Technical Parameter
|
Model |
SCL-RC+ |
SCL-RTC+ |
|
Timing Function |
No |
Yes |
|
Speed Range |
0–1600 rpm |
|
|
Stirring Volume |
10–1000 ml |
|
|
Environmental Temperature |
0–60 °C |
|
|
Environmental Humidity |
80% |
|
|
Power Supply |
220V 50Hz |
|
|
Heating Power |
300 W |
|
|
Working Plate Size |
150×150 mm |
|
|
Size |
270×280×60 mm |
|
|
Weight |
2.5 kg |
|
Selection of Magnetic Stirrer Rotor
According to the capacity and specifications of the agitator stirring liquid, the size of the agitator rotor can be selected. The larger one can stir the larger volume of liquid. If the viscosity of the stirred solution is relatively large, it is recommended to purchase the rotor. When it is relatively large, it can avoid uneven mixing of the solution.
FAQ
1. What kind of heating plate does this digital magnetic stirrer use?
The QiweiLab digital heating magnetic stirrer facets a nano-ceramic heating plate. The floor is designed for laboratory heating and magnetic stirring applications. For chemical compatibility, cleansing methods, and most running conditions, please seek advice from the established product specs earlier than use.
2. What is the working plate size?
The listed working plate measurement is one hundred fifty × one hundred fifty mm. Before choosing the instrument, take a look at whether or not your laboratory vessel matches the accessible heating location and whether or not its base is appropriate for use on a ceramic heating surface.
3. What is the stirring pace range?
The listed stirring velocity vary for the SCL-RC+ and SCL-RTC+ fashions is 0–1600 rpm. The fantastic velocity relies upon on sample volume, liquid viscosity, vessel geometry, and stir bar size.
4. What is the most heating temperature?
The contemporary product facts lists a heating energy of three hundred W, however the most heating temperature have to be validated from the present day model-specific specification sheet. If your utility requires a described temperature range, please supply your goal temperature when inquiring for technical information.
5. Is an exterior PT100 temperature probe supported?
External PT100 probe compatibility ought to be proven for the chosen model. Before ordering, test whether or not the probe is available, which mannequin helps it, and whether or not it measures the pattern temperature for show solely or additionally controls the heating process.
6. Does the instrument have over-temperature or dry-run protection?
The genuine protection features have to be established in the manufacturer's technical documentation. Over-temperature safety and dry-run detection are distinct functions. Please confirm the handy safety mechanisms and the instrument's response to odd working stipulations before use.
7. Is the nano-ceramic plate appropriate for corrosive chemicals?
Chemical compatibility relies upon on the ceramic material, the chemical used, its concentration, temperature, and publicity duration. Do no longer anticipate that the heating plate is like minded with each and every acid, alkali, or solvent. Contact our crew with your reagent and working prerequisites to request a compatibility review.
8. What is the distinction between the SCL-RC+ and SCL-RTC+ models?
The listed specs point out that the SCL-RC+ does now not have a timing function, whilst the SCL-RTC+ consists of a timing function. Both fashions are listed with a 0–1600 rpm stirring pace range, 10–1000 mL stirring capacity, three hundred W heating power, and a a hundred and fifty × a hundred and fifty mm working plate.
9. Can I request a specification sheet for bulk purchasing?
Yes. Contact QiweiLab to request the applicable specification sheet and quotation. Please grant your favored model, application, goal temperature, anticipated order quantity, and vacation spot u . s . so that our group can overview your requirements.
10. How can I verify whether or not this mannequin fits my laboratory application?
Please share your pattern volume, liquid properties, required stirring speed, goal temperature, vessel dimensions, and any specific chemical compatibility or security requirements. Our crew can overview the reachable specs and assist you pick out the records that desires to be verified earlier than purchase.
