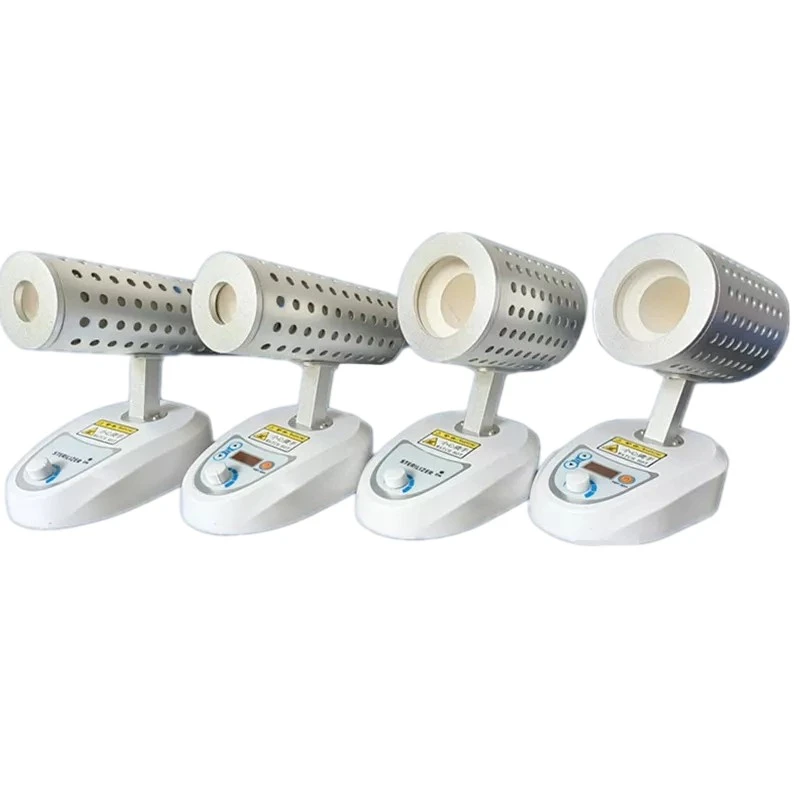

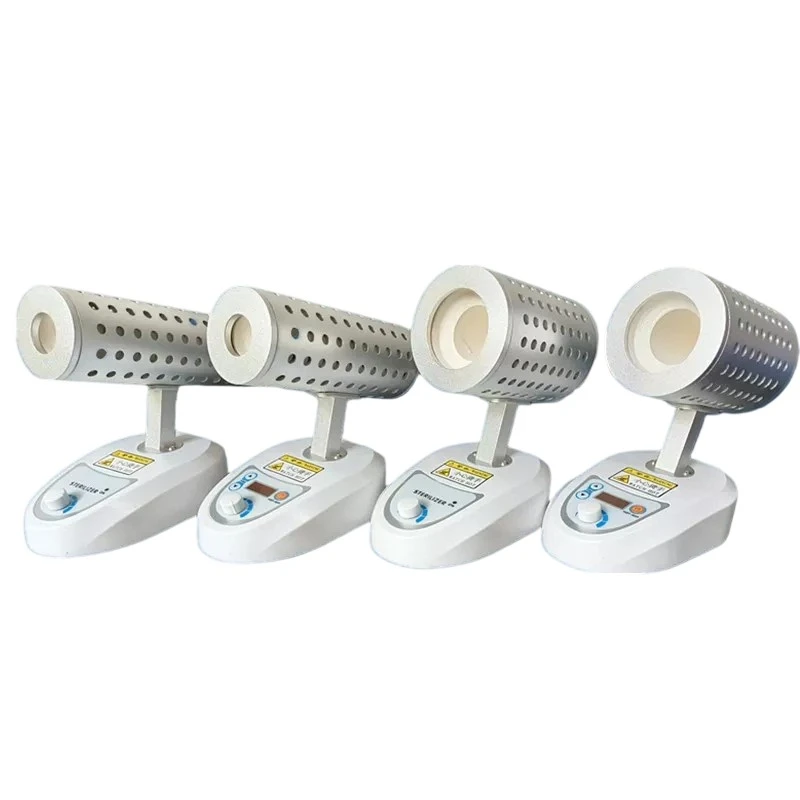

Infrared Inoculation Loop Sterilizer

Infrared Inoculation Loop Sterilizer
Details:
Model: QW-MJ-15
Central Zone High Temperature: 850 ± 25℃
Disinfection Product Outer Diameter: Ф15mm
Heating Zone Total Length: 165mm
Send Inquiry
Description
Send Inquiry

Hangzhou Qiwei Instrument Co., Ltd. is one of the leading manufacturers and suppliers of infrared inoculation loop sterilizer in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk infrared inoculation loop sterilizer in stock here from our factory. We also accept customized orders.





product key technologies
3
01.

Introduction

The infrared inoculation loop sterilizer adopts an intelligent temperature controller, and the sterilization temperature is set according to the experimental requirements. There is no open fire operation. The heating component adopts a high-efficiency ceramic infrared heating pipe, which has the advantages of small size, light weight, simple operation, fast temperature rise, high temperature, and long service life. It can quickly sterilize small instruments, not affected by external factors, improve the working efficiency of the experiment, and can adapt to various experimental environments. It is a good assistant for experimental operators at all levels of health and epidemic prevention stations, environmental monitoring stations, food health supervision and inspection institutes, hospitals, biological products institutes, drug inspection institutes, food factories, daily chemical plants, colleges and universities, and scientific research units.

02.

Principle

The infrared inoculation ring sterilizer uses infrared rays to work, and 'bombards' bacteria and viruses through high-energy particles radiated by infrared rays to inactivate them. At the same time, infrared rays can also stimulate water molecules to form active water and further enhance the disinfection effect. This sterilizer has a broad spectrum, can kill including bacteria, viruses, fungi, parasites and other microorganisms, so as to achieve the purpose of complete disinfection and sterilization.

1



Feature



1. Inoculating loop sterilization is safe and hassle-free, fully compatible as an alcohol lamp replacement.

2. The internal heating zone temperature goes beyond 800℃, with fast sterilization completed in 5–7 seconds.

3. Portable compact structure, simple to operate; elegant appearance, convenient cleaning and excellent durability.

4. Supports application scenarios inside anaerobic laboratories.

5. Organic residues are incinerated deep inside the ceramic funnel, effectively preventing infectious splashing and mutual cross-contamination.

6. Special intelligent control logic optimizes heating operation, prolongs core heating component life and enhances use reliability and safety.



Technical Parameter



Model

QW-MJ-15

QW-MJ-15S

QW-MJ-35

QW-MJ-35S

Central Zone High Temperature

850 ± 25℃

850 ± 25℃

850 ± 25℃

850 ± 25℃

Disinfection Product Outer Diameter

Ф15mm

Ф15mm

Ф35mm

Ф35mm

Heating Zone Total Length

165mm

165mm

120mm

120mm

Heating Time

15min

15min

15min

15min

Environmental Temperature

5-40℃

5-40℃

5-40℃

5-40℃

Fuse

3A

3A

3A

3A

Power Supply

220V 50Hz

220V 50Hz

220V 50Hz

220V 50Hz

Power

150W

150W

250W

250W

Weight

1.3kg

1.3kg

1.6kg

1.6kg

Size

170×105×180mm

170×105×180mm

170×105×200mm

170×105×200mm

Timing Function

No

0 - 999 minutes

No

0 - 999 minutes
