Introduction

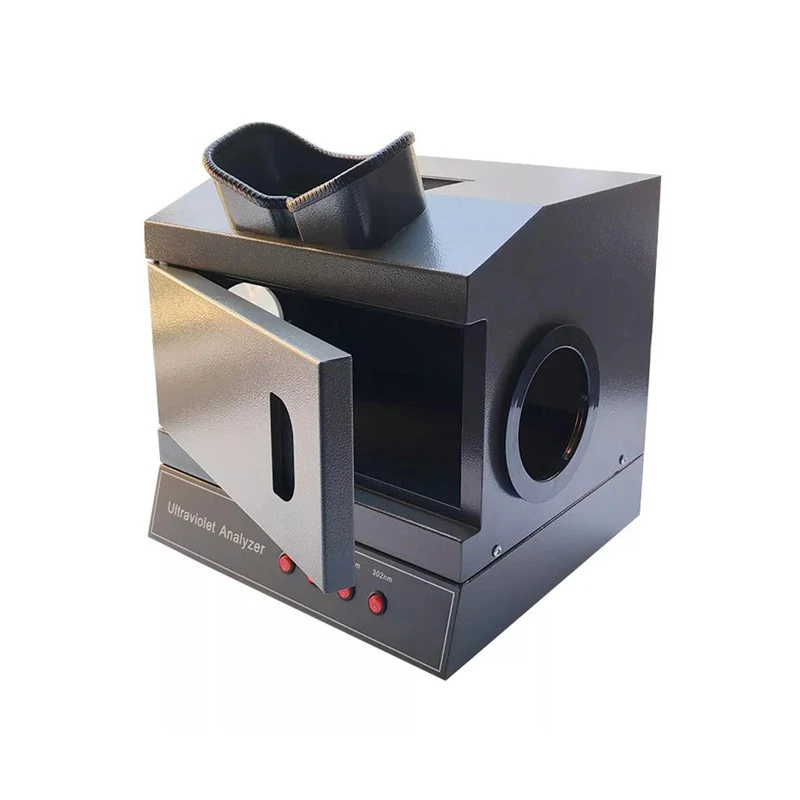

The WFH-203BP photographic dark box UV analyzer is a high-performance laboratory instrument designed for fluorescence analysis and photographic documentation. Its fully enclosed, light-proof structure creates an ideal detection environment, eliminating interference from ambient light. The instrument provides stable 254nm and 365nm ultraviolet output with high intensity and uniformity. With a built-in camera interface, it supports real-time image capture, result storage, and data comparison, making it suitable for research, production, and quality inspection.
Advantage
The photographic dark box UV analyzer specially designed a dark box. The user does not need a dark room to observe and analyze the sample. The dark box observation room is equipped with an anti-ultraviolet glass, which filters more than 95 % of the ultraviolet light. It can emit short-wave, medium-wave, long-wave ultraviolet and visible light radiation at four wavelengths.
Application
1. This analyzer is widely used in molecular biology, chemistry, medicine, pharmaceuticals, food testing, and forensic identification.
2. It detects fluorescent substances, biomolecules, drug components, microbial colonies, and toxic compounds.
3. It supports thin-layer chromatography, sample imaging, and long-term record-keeping.
4. The dark box design allows safe operation without a darkroom, while the photographic function improves experimental efficiency and data traceability.
Structure

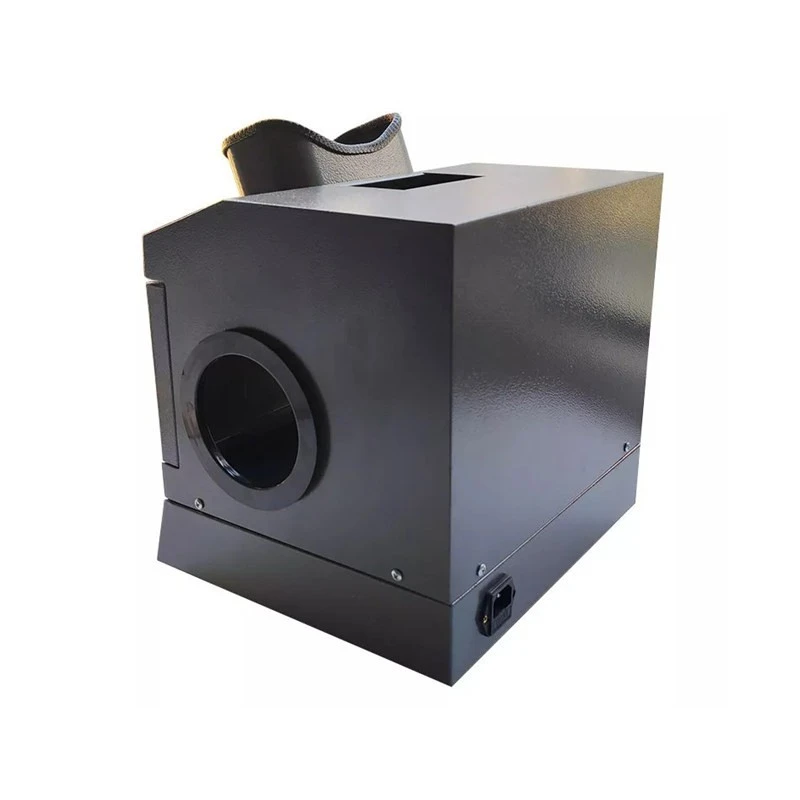

The device features a sealed dark chamber, dual-wavelength UV lamp groups, and high-performance filters. The anti-ultraviolet glass window filters over 95% of harmful UV radiation. The camera-compatible structure ensures clear imaging and convenient operation.
Technical Parameter
|
Model |
WFH-203BP |
|
Ultraviolet Wavelength |
254nm 6W×2; 365nm 6W×2 |
|
Visible Light |
6W×1 |
|
Ultraviolet Color Filter |
200×90mm |
|
Size |
310×280×360mm |
|
Maximum Irradiation Area |
250×250mm (usable area) |
|
Power Supply |
AC 220V±10% 50Hz |
|
Weight |
7.2kg |
