Hangzhou Qiwei Instrument Co., Ltd. is one of the leading manufacturers and suppliers of portable ph pen in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk portable ph pen in stock here from our factory. We also accept customized orders.
product key technologies

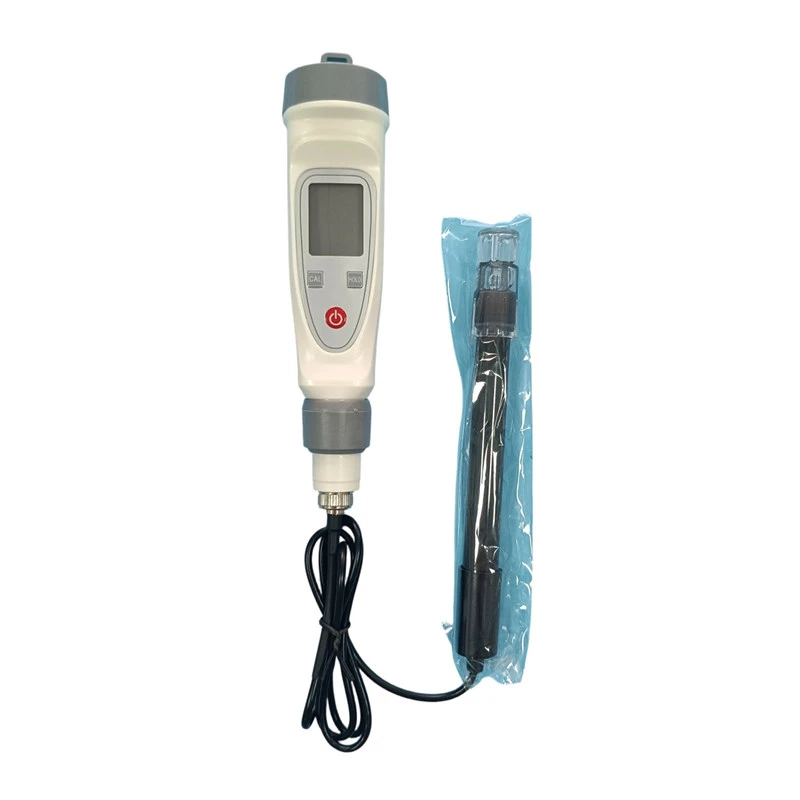

This Portable pH Pen is specially designed for rapid on-site water quality analysis outdoors. Adopting an integrated pen-shaped design, it is exquisite and compact, easy to store in a pocket or tool bag for great portability. After power-on, the screen simultaneously and intuitively displays the pH acidity and real-time temperature data of the water body.
The device has excellent dustproof and waterproof performance, and the electrode is replaceable independently, effectively extending the service life of the instrument.
With laboratory-grade precise measurement performance and the flexible advantages of outdoor mobile detection, it is an optimal portable device for quickly judging water acidity and alkalinity indicators in field applications.
Pre-Use Guidelines for the Device
- Calibration Guidelines: Three-stage calibration must be performed by staff upon initial startup or whenever a brand-new detecting electrode is mounted. Dip the sensor head into calibration reference liquid and pause till constant digital outputs appear. The device's function keys allow adjustment of corresponding standard values to finalize the entire calibration sequence. A seven-day calibration cycle is recommended, and the frequency can be revised to fit on-site operational environments.
- Probe Sanitization: Before conducting any tests, flush the probe with distilled water. This keeps residual particles from lowering detection precision. If the probe is covered with greasy dirt or protein matter, soak it in specialized cleaning liquid, and perform a full rinse afterwards.
Step-by-Step Testing Guide
- Device activation & preheating: Start the instrument by pressing its power switch.
- Placement in test liquid: Lower the sensor straight down into the sample solution. Make sure two-thirds of the probe body is under the liquid surface. Contact with the container base and side walls must be avoided, which could cause contamination and affect the electric field.
- Readout confirmation & documentation: Pause until the figures remain stable, then document the measured data.
- Post-test care & storage: After finishing all tests, flush the probe thoroughly with deionized water. Pat off surface moisture gently using filter paper; never wipe the probe to prevent static electricity issues. Immerse the probe in dedicated storage liquid to protect it from drying and losing normal performance.
Technical parameters
|
Model |
PH-20 |
PH-20W |
| Measurement coverage |
pH: 0.1-14.0 |
|
|
Resolution |
pH: 0.1; Temp: 0.1°C 1F |
|
|
Accuracy |
pH: ± 0.1; Temp: 1°C/2F |
|
|
PH calibration |
25℃ three-point calibration 4.0 6.9 9.2 |
|
|
Electrode |
Integrated electrode |
External attached electrode |
| Surrounding thermal condition |
0-50°C (32-122°F) |
|
| Energy supply module |
4*AAA batteries |
|
|
Size |
Φ40*185mm |
|
|
Weight |
88g |
|
|
Model |
PH-20BWZ |
PH-20WZ |
| Measurement coverage |
PH: 0.1-14.0 |
|
|
Resolution |
PH: 0.1; Temp: 0.1°C 1F |
|
|
Accuracy |
PH: ± 0.1; Temp:1°C/2F |
PH: ± 0.02; Temp:1°C/2F |
|
PH calibration |
25 ℃ three-point calibration 4.0 6.9 9.2 |
|
| Surrounding thermal condition |
0-50°C (32-122°F) |
|
| Energy supply module |
4*AAA batteries |
|
|
Size |
Φ40*185mm |
|
|
Weight |
88g |
|
|
Model |
PH-20 |
PH-20B |
PH-20BW |
|
Measurement coverage |
pH:0.1-14.0 |
||
|
Resolution |
PH: 0.1; Temp: 0.1°C 1F |
||
|
Accuracy |
PH: ±0.1; Temp: 1°C/2F |
||
|
PH calibration |
25°C three-point calibration (4.0 6. 9 9.2) |
||
|
Electrode |
Integrated electrode |
External attached electrode | |
| Surrounding thermal condition |
0-50°C (32-122°F) |
||
| Energy supply module |
4*AAA batteries |
||
|
Size |
Φ40*185mm |
||
|
Weight |
88g |
||
FAQ
Q:Can you do our design?
A:Of course, your customized design (OEM) is available.
Q:Are you a factory direct supplier?
A:Yes,we are the original factory.Order directly from our factory with no extra intermediate fees. We offer faster delivery, better service and more competitive prices.
Q: Do you deal with urgent orders?
A: Sure. Please contact ASAP for details.
Q: I bought from you once. Can I have a special offer this time?
A: Contact for details. We do value our customers; we can and will offer you good price.
Hot Tags: portable ph pen, China portable ph pen manufacturers, suppliers, factory
