Hangzhou Qiwei Instrument Co., Ltd. is one of the leading manufacturers and suppliers of dispersion mixer in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk dispersion mixer in stock here from our factory. We also accept customized orders.
product key technologies

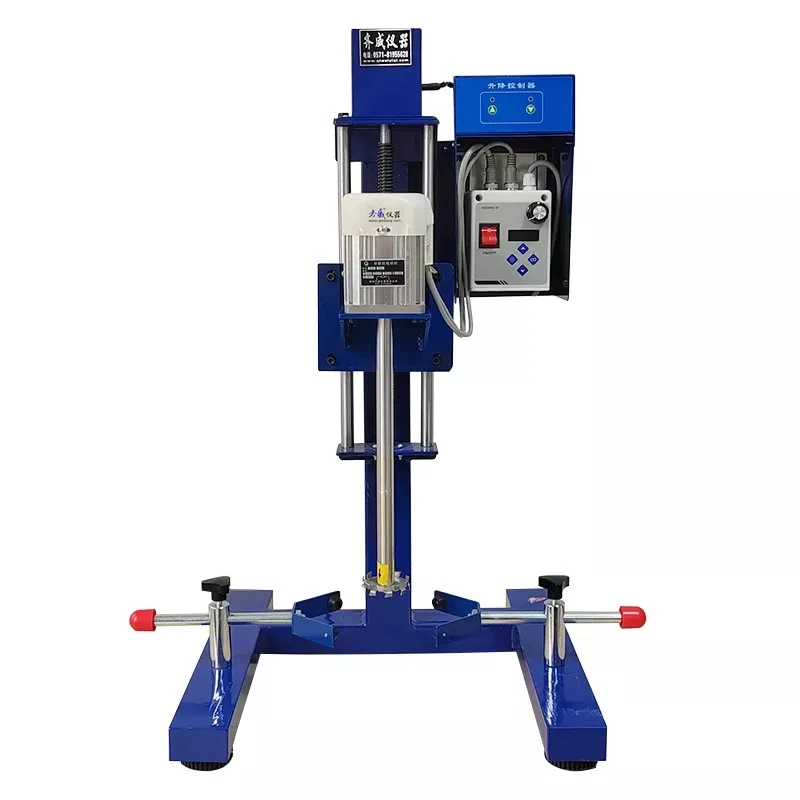

The JB-SF(DS) automatic lifting square tube support serie is an automatic lifting dispersion mixer with a square tube stand. It integrates electric height adjustment for easier operation, ideal for laboratories seeking improved efficiency in daily mixing and dispersion work.
1. Electric automatic lifting system enables convenient height control without manual operation, improving work efficiency.
2. The variable frequency motor system provides stable rotation and stepless speed regulation for various experimental needs.
3. The dispersion disc is securely mounted on the shaft, ensuring smooth and efficient stirring performance.
4. The jacketed stainless steel material container is fixed firmly, supporting cooling water circulation for temperature management.
Principle
The core working mechanism of the dispersion mixer lies in the combination of fluid dynamic theory and mechanical stirring. The motor outputs power to drive the stirring shaft rotating at high speed. The rotor blades produce strong shear impact and turbulent flow in liquid, making materials evenly mixed in a short period.
Application
1. Chemical enterprises use this equipment to disperse and blend coatings, inks, industrial adhesives and chemical raw materials.
2. It is applied in the food industry for stirring treatment and homogenization of compound sauces and dairy foods.
3. The pharmaceutical industry depends on it to prepare various medicinal ointments, emulsions and semi-fluid medicines.
4. It is indispensable for sewage disposal and sludge mixing operation in environmental governance.
5. It can serve both small-scale experimental research in labs and standardized mass production in workshops.
Technical Parameter
|
Model |
JB-SF550DS |
JB-SF750DS |
JB-SF1100DS |
|
Power |
550W |
750W |
1100W |
|
Speed Range |
0-6000 r/min |
0-6000 r/min |
0-5000 r/min |
|
Dispersing Disc Size |
50mm, 60mm |
50mm, 60mm, 80mm |
50mm, 60mm, 80mm |
|
Shaft Length |
320mm |
320mm |
320mm |
|
Shaft Material |
304 Stainless Steel |
304 Stainless Steel |
304 Stainless Steel |
|
Shaft Diameter |
Φ20mm |
Φ20mm |
Φ20mm |
|
Lifting Stroke |
330mm |
330mm |
330mm |
|
Overall Dimensions |
460×420×800mm |
460×420×800mm |
460×420×800mm |
|
Power Supply |
220V 50Hz |
220V 50Hz |
220V 50Hz |
|
Net Weight |
19kg |
19kg |
19kg |
|
Lifting Method |
Auto-Lifting |
Auto-Lifting |
Auto-Lifting |
Operation Point
1. Pre-start inspection: Confirm whether the equipment is well grounded, whether the stirring blades are worn, and whether the lubricating oil at the transmission part is sufficient.
2. Material delivery specification: According to the equipment model to control the amount of single material, avoid overload operation ; when adding materials, start the equipment first and then feed to prevent the machine from jamming.
3. Monitoring in operation: Pay attention to whether the sound of the equipment is abnormal, whether the mixing container is leaking, and regularly observe the motor temperature (generally not more than 60℃).
