Introduction

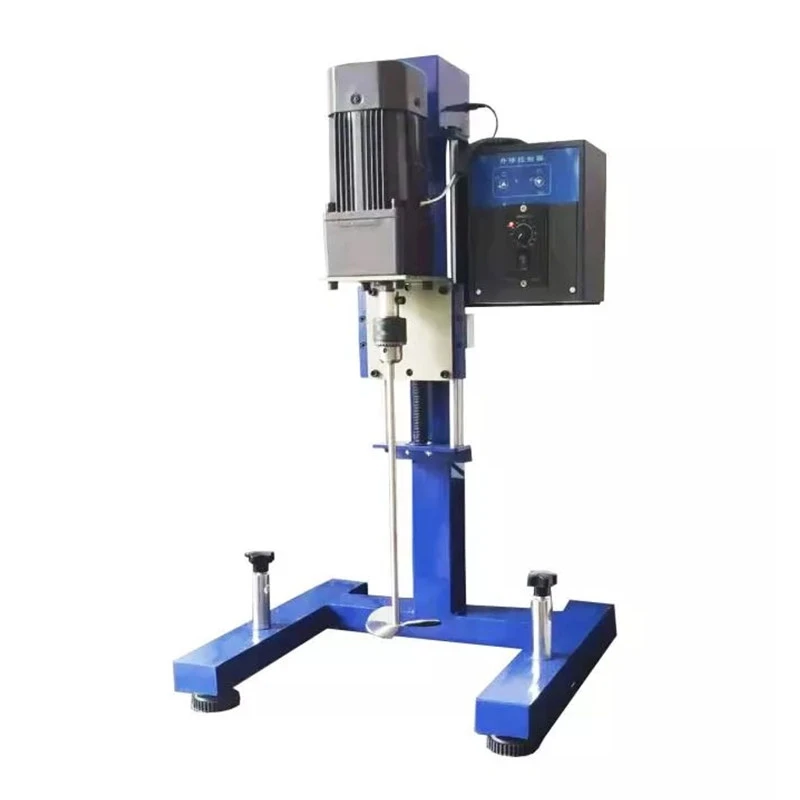

The QW-JB-250S electric stirrer features high torque and low noise, making it particularly suitable for stirring at high viscosity and low speed. It is also equipped with control instruments and is suitable for production enterprises and units in heavy industry, light industry, chemical industry, pharmaceuticals, scientific instruments and other fields.
Construction
1. This machine adopts an electric lifting system, which is convenient for lifting.
2. Install the two clamps respectively on the fixed frame, with the plane of the clamping rods facing upwards.
3. Fix the mixing bucket in the gripper and then tighten the fixing screws of the column.
4. Adjust the height position of the motor and the capacity inside the container.
Application
1. It covers extensive application in scientific experiments, water processing, industrial production, academic education and professional laboratories of diverse trades.
2. Researchers adopt it for synthetic chemistry, biopharmaceutical preparation and environmental detection, optimizing test progress and maintaining liquid uniformity.
3. Water treatment professionals use it for water purifying equipment R&D, simulated testing, and experimental analysis in water supply and sewage treatment facilities.
4. Manufacturing sectors including petrochemical, food production and paint making rely on it to boost reaction yield and stabilize product quality.
5. Six-position electric stirrers are regarded as basic facilities for college and research institute laboratories.
6. It is also well-suited for analytical labs in environment, petroleum, chemical, metal refining, light manufacturing, medicine, power and paper printing fields.
Technical Parameter
|
Model |
QW-JB-250S |
|
Output Power |
250W |
|
Power Supply |
220V 50Hz |
|
Speed Regulation Range |
10-500rpm |
|
Stirring Rod |
￠8×340mm |
|
Stirring Rod Material |
Stainless steel stirring paddle |
|
Overall Height |
80cm |
|
Net Weight |
28kg |
Note
1. Must be grounded when using.
2. When working, if it is found that the stirring rod is different and the stirring is unstable, please turn off the power supply to adjust the clamping chuck, so that the stirring rod is concentric.
3. Medium-speed stirring can reduce vibration and prolong service life.
4. The instrument should be kept dry.
5. Ambient temperature: 0-5℃, no corrosive gas.
6. Relative humidity: 35% - 85% (no condensation).
7. Don 't overload use.
8. When not used for a long time, please store it in a dry and non-corrosive gas.
