Hangzhou Qiwei Instrument Co., Ltd. is one of the leading manufacturers and suppliers of benchtop multi-parameter cupric ion concentration meter in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk benchtop multi-parameter cupric ion concentration meter in stock here from our factory. We also accept customized orders.
product key technologies

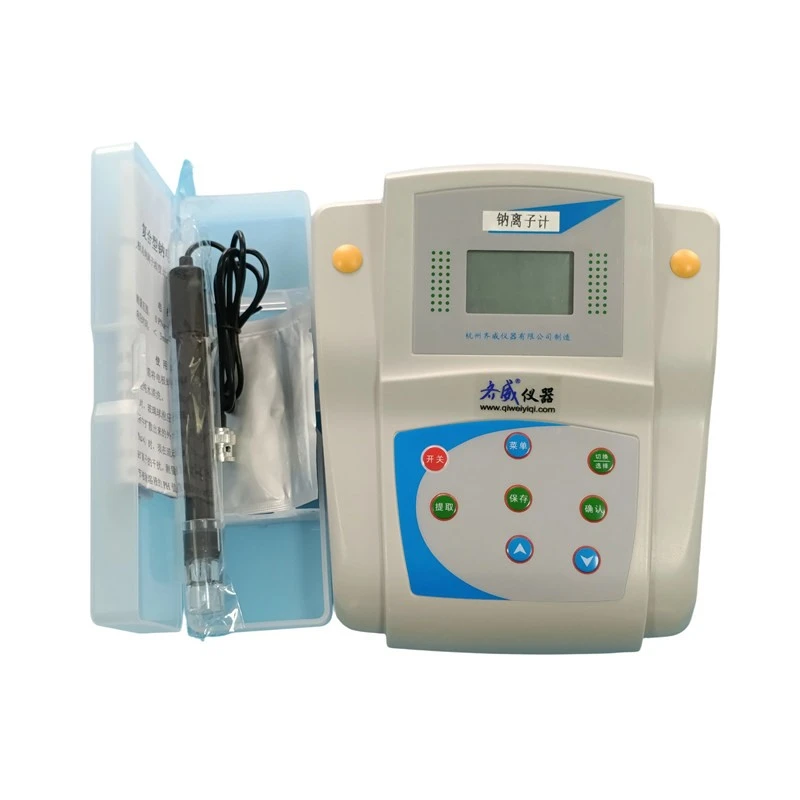

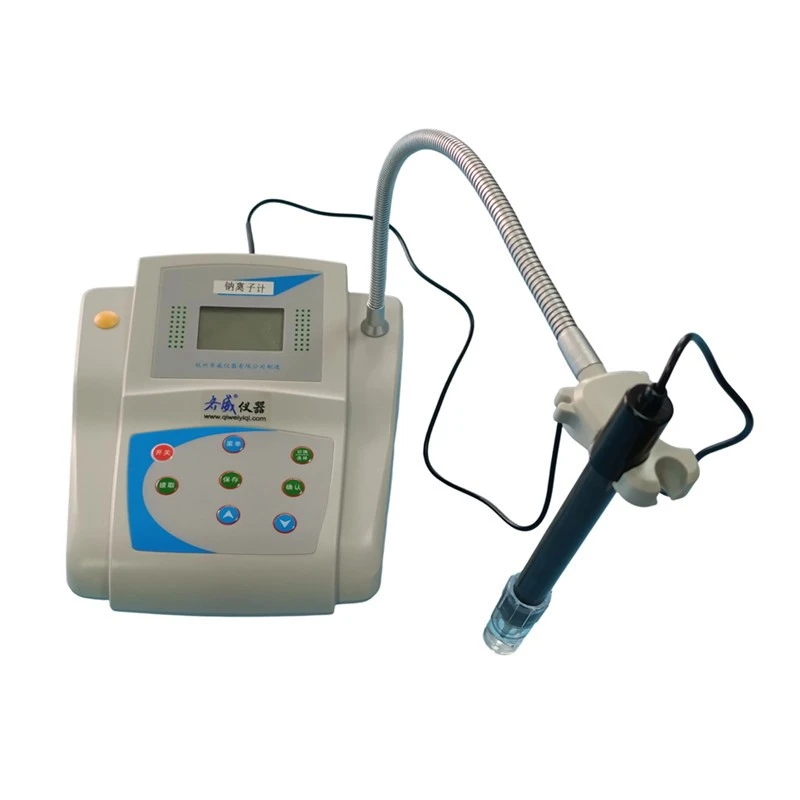

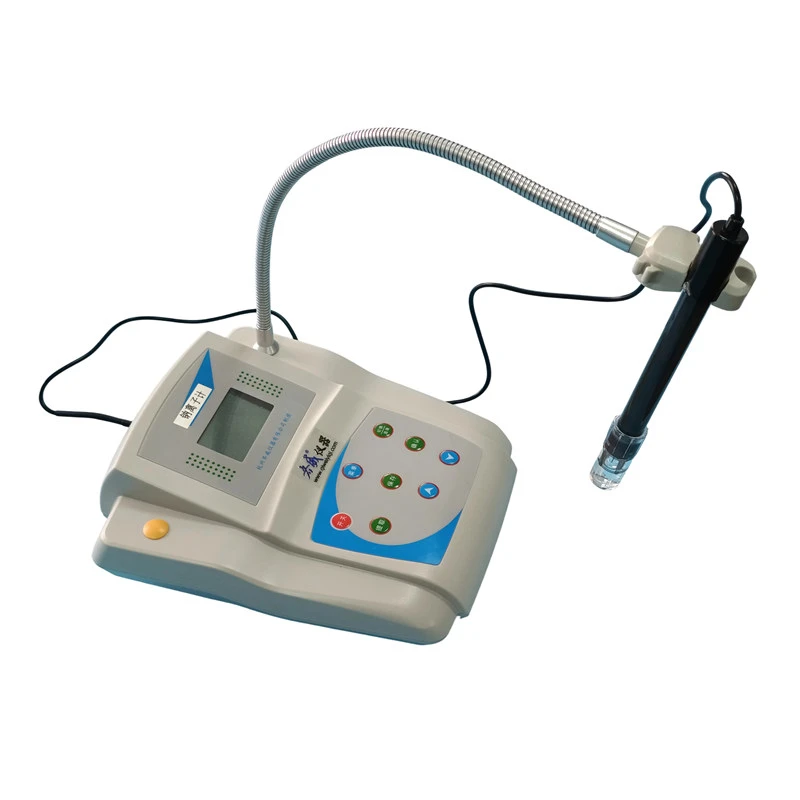

The PXS-Cu Benchtop Multi-Parameter Cupric Ion Concentration Meter is specially developed for the detection of cupric ion content in water. It is widely applied in universities, teaching and research institutions, scientific research institutes, petrochemical industry and microelectronics sectors. It is suitable for the accurate detection and analysis of cupric ion concentration and ion activity in various water samples such as natural water sources and industrial wastewater.
Technical parameters
| Model | PXS-Cu |
| Measuring Range | pCu: (3.00～7.00)pCu; Cu2+: 6.35μg/L～63.5mg/L; mV: (-1800～1800)mV |
| Resolution | 0.01 pCu |
| Basic Error of the Electronic Unit | ±0.02 pCu ±1 word |
| Instrument Basic Error | ±0.05 pCu |
| Calculation Error | ±0.3% |
| Repeatability Error | ≤±0.03 pCu ±1 word |
| Stability of the Electronic Unit | ±0.02pCu/3h |
| Temperature Compensation Range | (5.0～50.0)℃ |
| Size | 210×190×80mm |
| Weight | 1.5KG |
Working condition
| Ambient Temperature | (5~40)℃ |
| Relative Humidity | ≤80% |
| Power Supply | AC 220V ± 22V; Frequency 50 ± 1HZ |
| Interference | There is no interference from other magnetic fields except the Earth's magnetic field |
| Vibration | No significant vibration |
Features
- The PXS-Cu benchtop multi-parameter cupric ion concentration meter adopts microcomputer chip control design. It features simple and intuitive operation logic, with measurement data displayed digitally for clear reading and precise results.

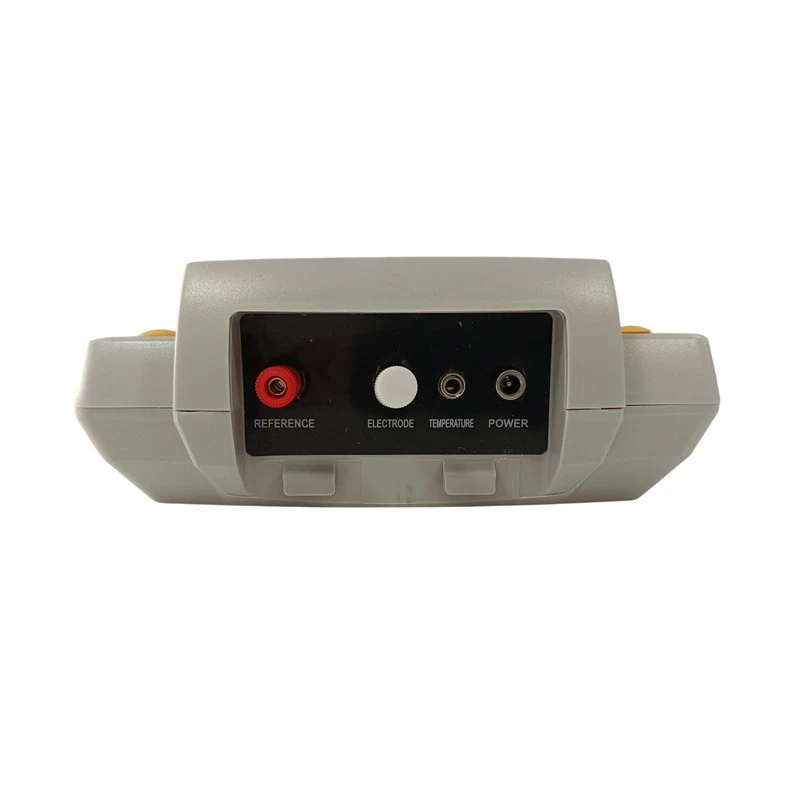

- The instrument is equipped with a dual-mode temperature calibration system, supporting automatic induction compensation and manual setting compensation. When connected with a temperature sensor probe, the device measures ambient temperature in real time and performs automatic correction; without the probe, users can preset temperature parameters manually to complete compensation adjustment. The temperature probe is an optional accessory, which customers can order separately according to actual application needs.
- This model can display pCu measurement parameters synchronously, and also supports direct reading of copper ion [Cu] concentration, enabling simultaneous viewing of two sets of data.
- Adopting an exquisite and minimalist appearance design, the instrument features a compact and lightweight body, making it convenient for placement and storage.
