Hangzhou Qiwei Instrument Co., Ltd. is one of the leading manufacturers and suppliers of benchtop multi-parameter cadmium ion concentration meter in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk benchtop multi-parameter cadmium ion concentration meter in stock here from our factory. We also accept customized orders.
product key technologies

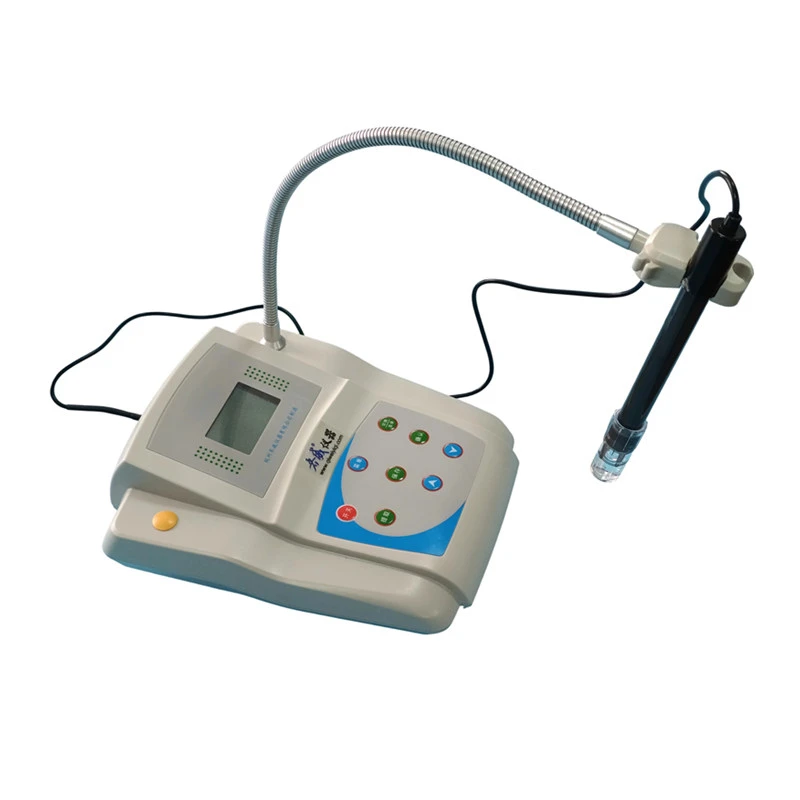

The PXS-Cd Benchtop Multi-Parameter Cadmium Ion Concentration Meter serves chiefly to measure the level of cadmium ions present in water-based liquids. This device incorporates purpose-driven structural and functional designs, rendering it particularly appropriate for high-purity water networks within power stations. In such settings, it allows exact tracking of water quality indicators including steam, recirculating water, and boiler makeup water. Moreover, this instrument finds broad utility across contexts such as academic labs, research organizations, petrochemical operations, and microelectronics fabrication. It facilitates determination of cadmium ion concentration in natural water sources, industrial effluent, and diverse aquatic habitats.
Technical parameters
|
Model |
PXS-Cd |
|
Measuring Range |
pCd: (0.00～6.00)pCd; Cd2+: 0.19g/L～19g/L; mV: (-1800～1800)mV |
|
Resolution |
0.01 pCd |
|
Basic Error of the Electronic Unit |
±0.02 pCd ±1 word |
|
Calculation Error |
±0.3% |
|
Repeatability Error |
≤±0.03 pCd ±1 word |
|
Stability of the Electronic Unit |
±0.02pCd/3h |
|
Temperature Compensation Range |
(5.0～ 50.0)℃ |
|
Size |
210×190×80mm |
|
Weight |
1.5KG |
Working condition
|
Ambient Temperature |
(5~40)℃ |
|
Relative Humidity |
≤80% |
|
Power Supply |
AC 220V ± 22V; Frequency 50 ± 1HZ |
|
Interference |
There is no interference from other magnetic fields except the Earth's magnetic field |
|
Vibration |
No significant vibration |
Features
- The PXS-Cd benchtop multi-parameter cadmium ion concentration meter adopts single-chip microcomputer technology. It features simple and convenient operation with intuitive and accurate digital display.
- It is equipped with manual and automatic temperature compensation functions. When the temperature electrode is connected, the instrument enables automatic temperature compensation and displays the current temperature. When the temperature electrode is disconnected, the instrument switches to manual temperature compensation and shows the manually set temperature value. The temperature electrode is an optional accessory. Customers who require it shall specify it when placing an order.
- In addition to pCd value display, the instrument also supports the display of cadmium ion concentration [Cd] value.
